These diodes stop your turn signals from backfeeding through the warning light on the tank.

If your new LED indicators flash all at the same time when indicating to one side, OR just all stay on then you want to install these diodes to solve your problem.

For Yamaha XVS650 V-star   -  all models

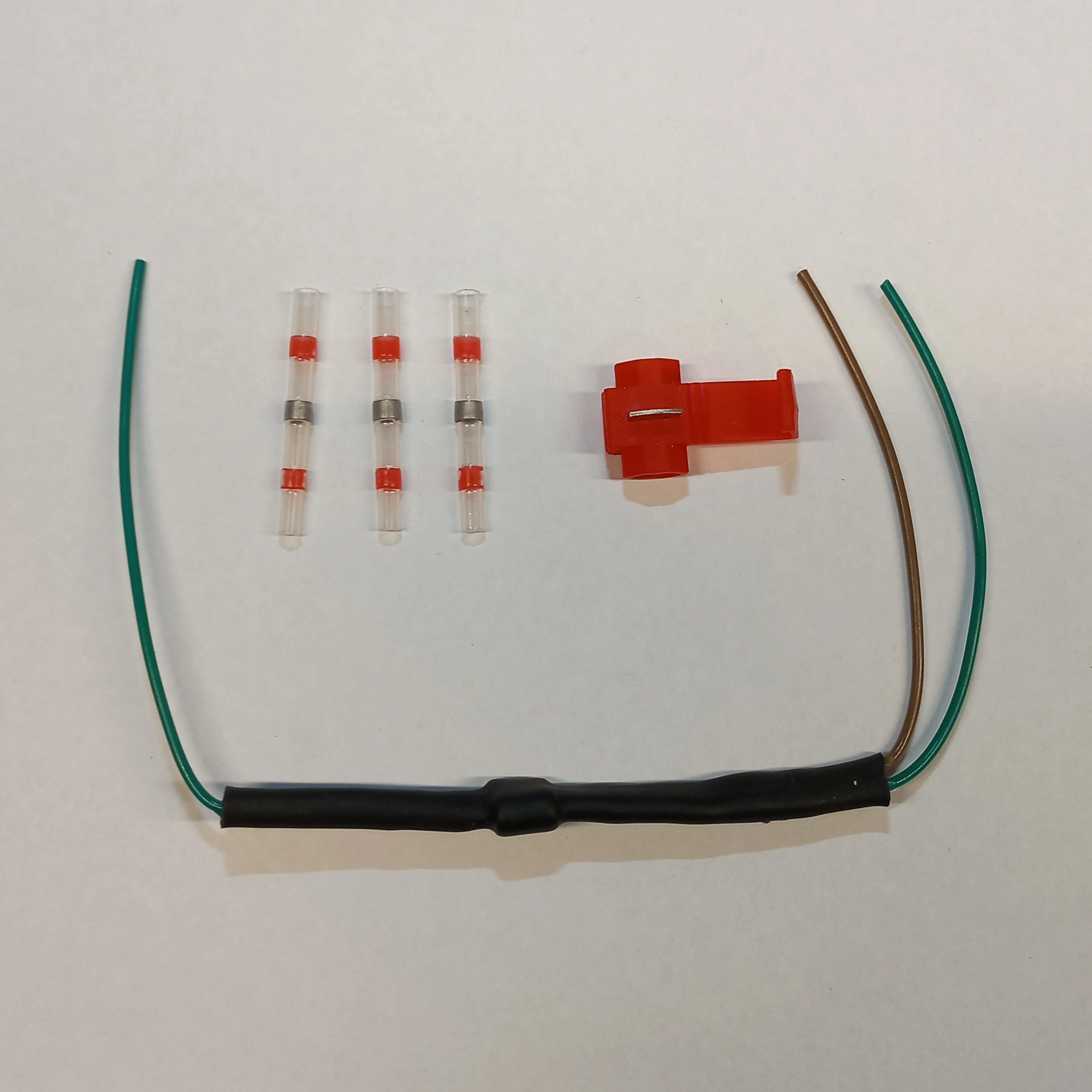

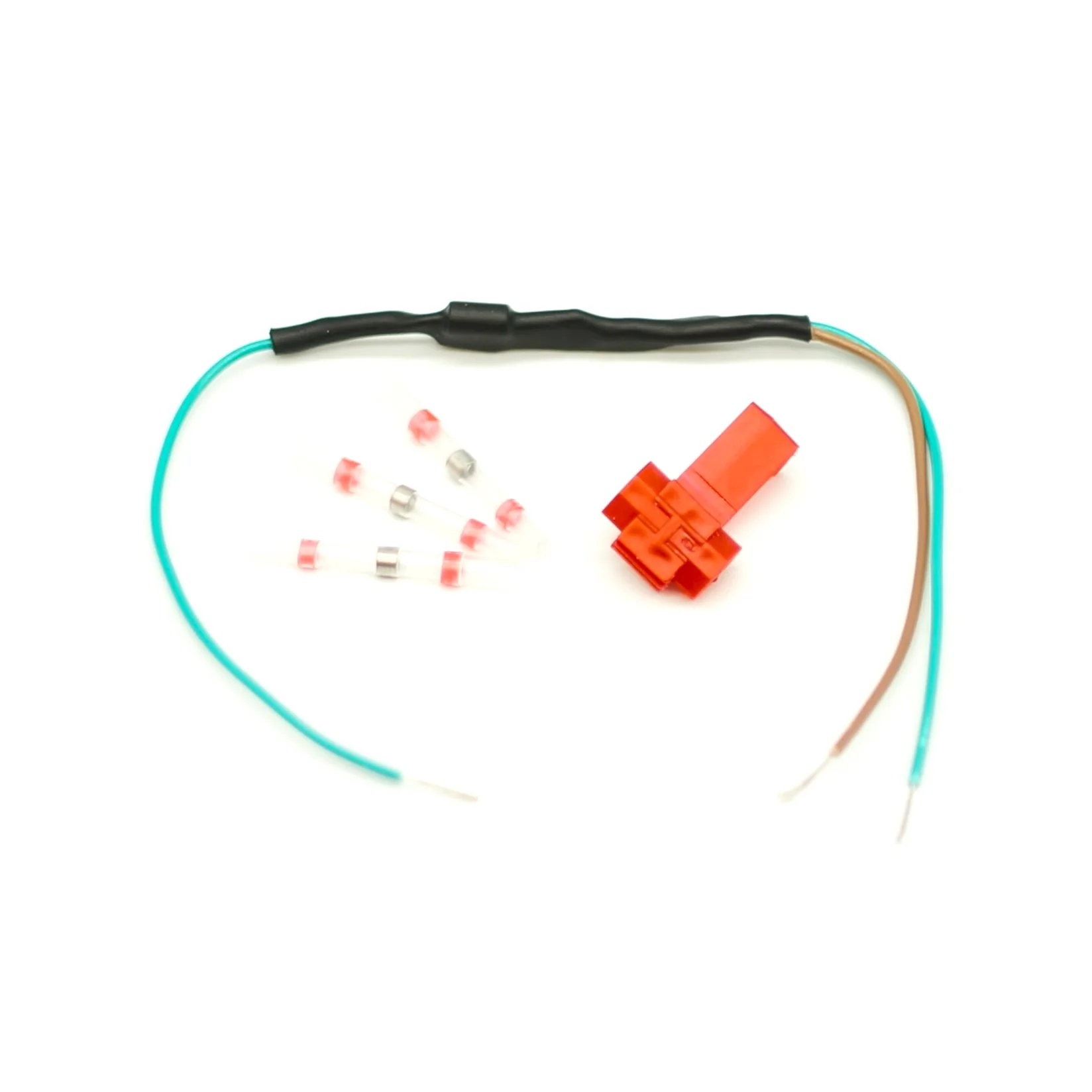

Includes:

• DIODES
• 3 SOLDER SLEEVES
• 1X CRIMP TERMINAL

Installation:

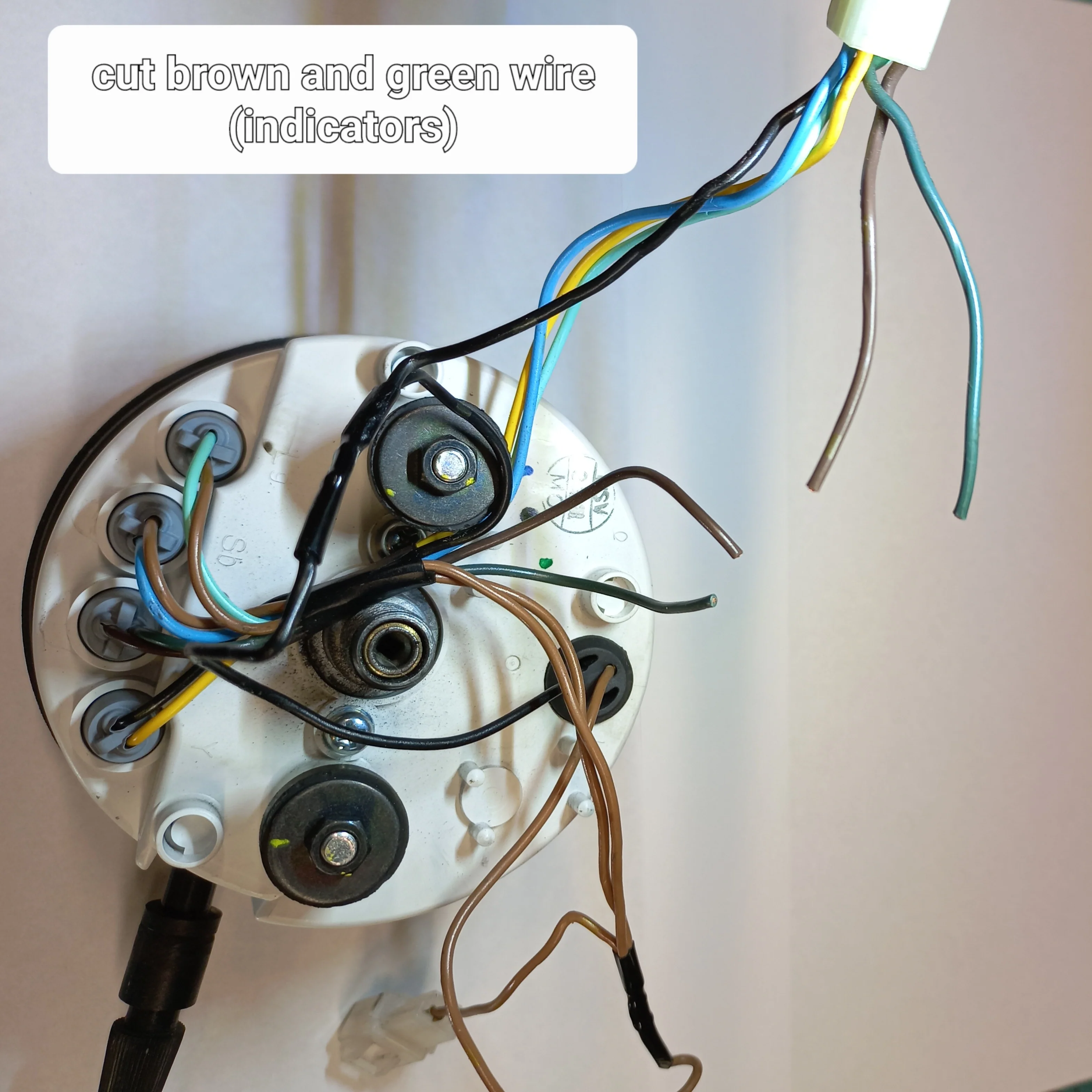

1) cut GREEN and BROWN wire (indicators / warning light on dash)

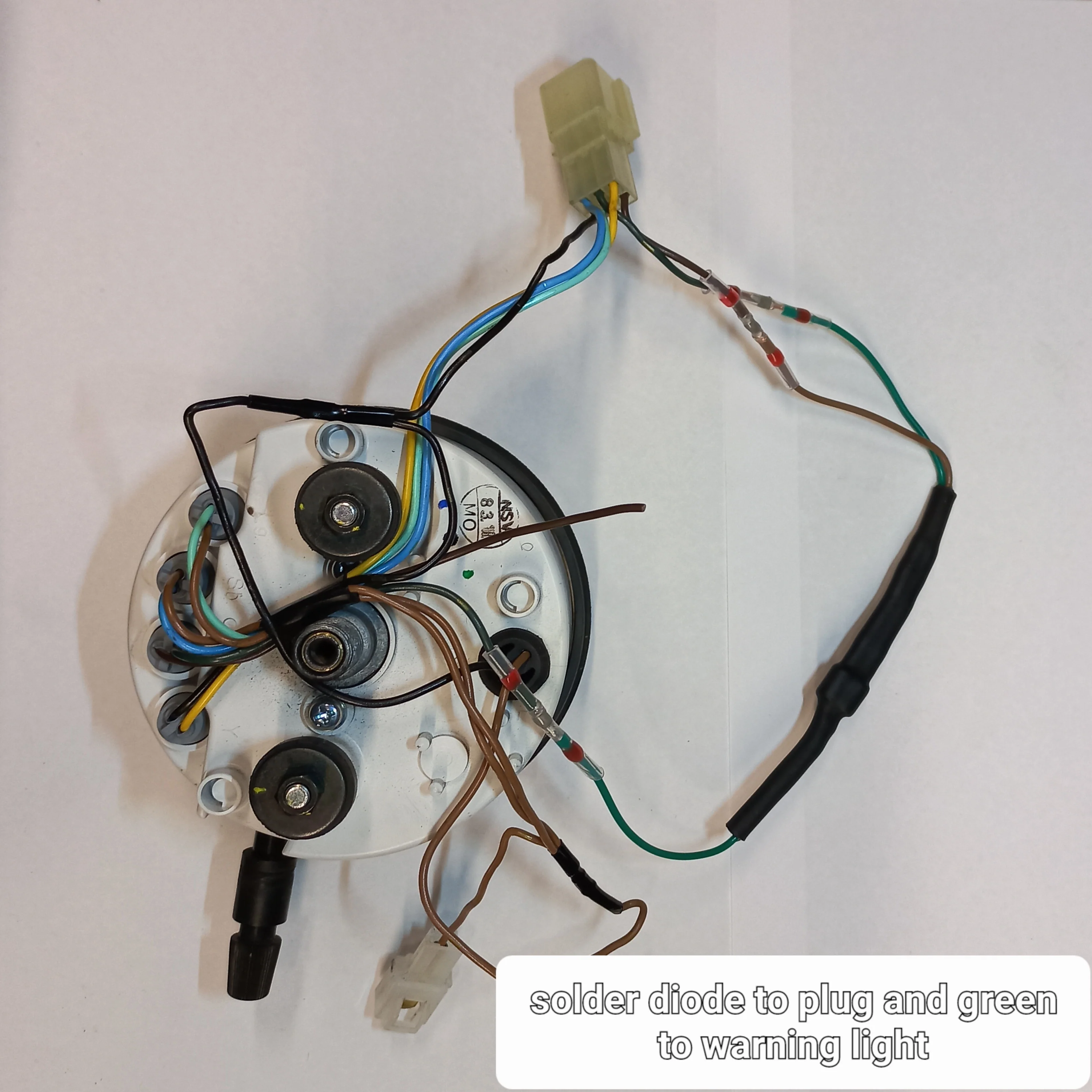

2) join DIODES to plug side, and GREEN from DIODES to warning light

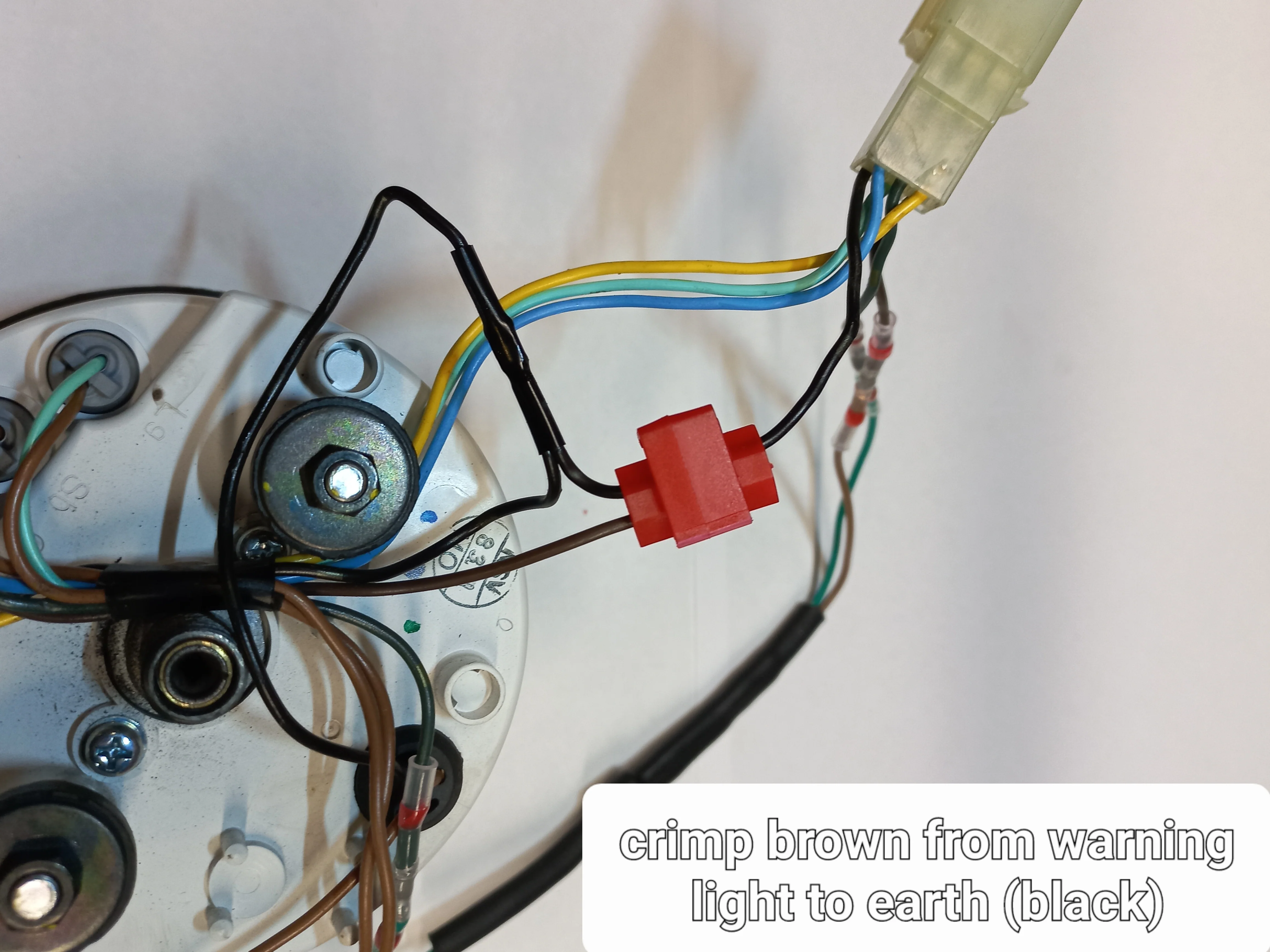

3) crimp BROWN from warning light to BLACK (EARTH)
