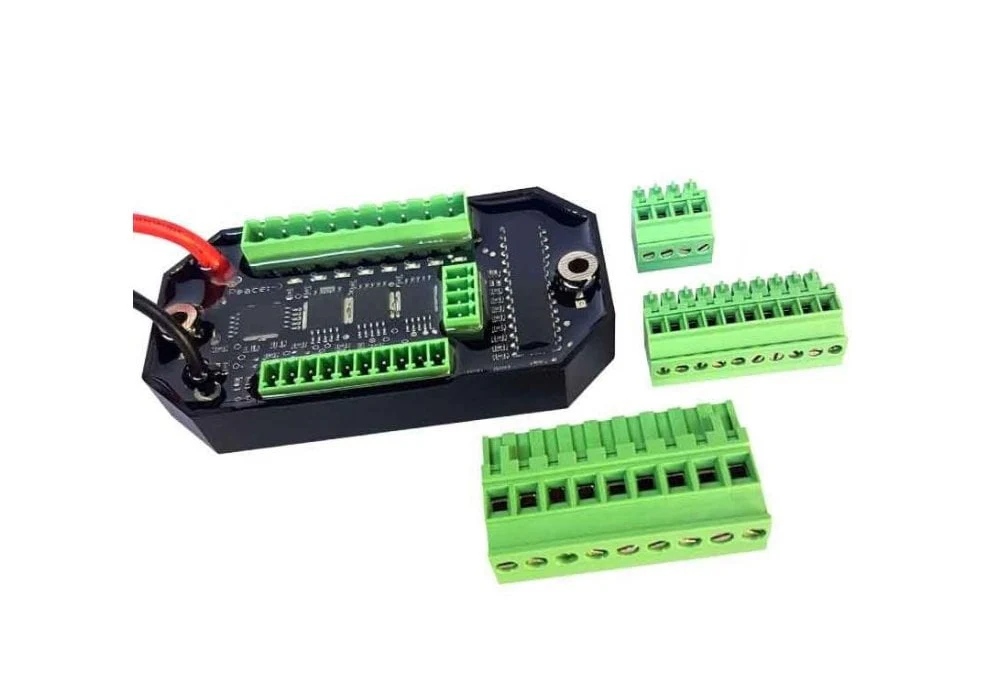

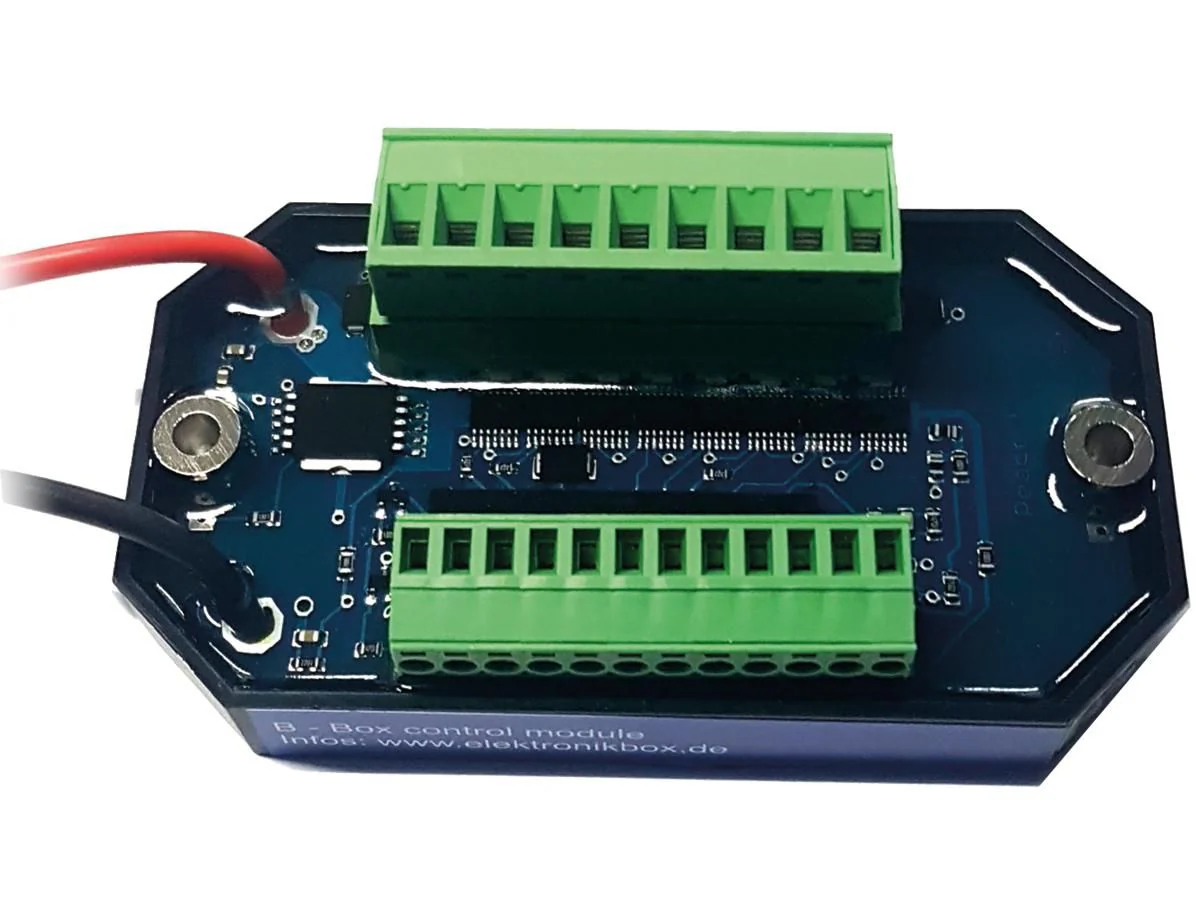

AXEL JOOST B-Box Control Module acts as the central control unit in the vehicle's electrical system and is perfectly suited to simplify your custom wiring

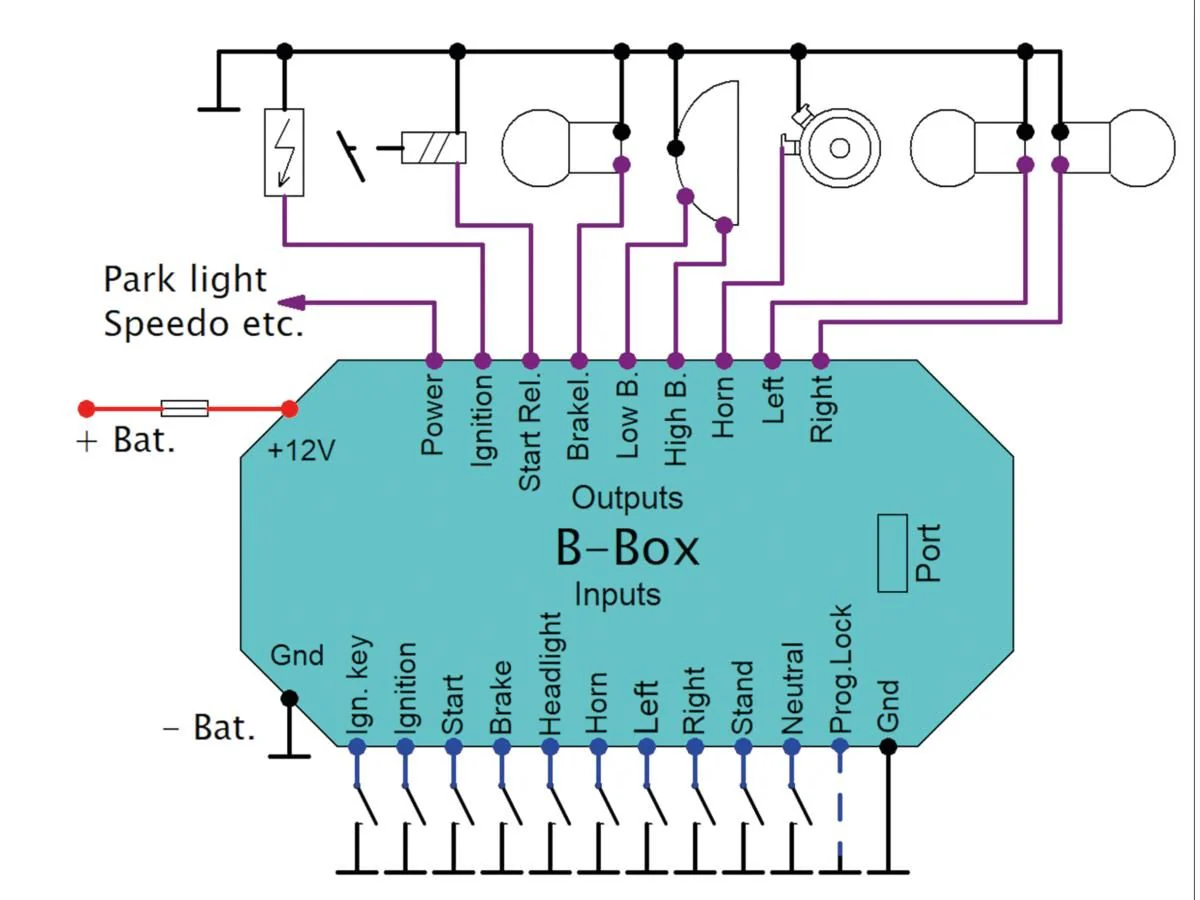

The B-Box can be controlled with the standard ignition switch. 8 implemented status LED´s allow a fast check while the installation or the adjustment of the different functions. A 15 Ampere inline fuse in the main line is integrated. However, the outputs are short circuit protected and self resetting. You can control the following functions with the box:

- Switch - output for parking light / Plate light / speedo etc.
- Ignition (with or without side stand switch control)
- Starter (with or without neutral switch control)
- Headlight with button or switch control
- Integrated flasher relay, control with buttons or switches
- Brake light with flasher option
- 2 buttons option, you can control your bike with only 2 buttons in the handlebar.
- Horn

The B-Box is a viable alternative to the motogadget M-Unit.
Apart from the price point, another major benefit to the B-Box, is that you can upgrade this unit to an external RFID antenna or Bluetooth, in standard form it simply operates with your ignition switch.

SPECS

Dimensions: 92 mm x 50 mm x 36 mm include connector terminals
Body material: shock resistant ABS plastic, water resistant potted
Case Color: Black
Main connections: 2,5 qmm
Power consumption in standby: About 0,2 mA
Maximum temperature: 80 degree Celsius
Maximum output current: 5 Ampere Head light, 3 Ampere for other outputs

The optional bluetooth module allows the complete control of your bike via your smart phone via the Android app.
Implemented status led´s allow a fast check or adjustment of the different functions.
A 20 Amp inline fuse in the main line is integrated. However, the outputs are short circuit protected and self resetting.

Made in Germany by Alex Joost

Download Instruction Sheet (PDF)
